Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include various grades of low, medium and high carbon steels, steel alloys, stainless steel, welding wire as well as various non-ferrous rods and wires.
Ⅰ、Description
| TC Wire Drawing Dies (Tungsten Carbide Wire Drawing Dies) are widely used in applications that require high temperature, impact resistance and only short-term use. This is made possible by the low price of tungsten carbide dies. Because of its ease of processing and low cost, tungsten carbide is also selected as the die blank material for most special-shaped molds and stranding dies. |  |

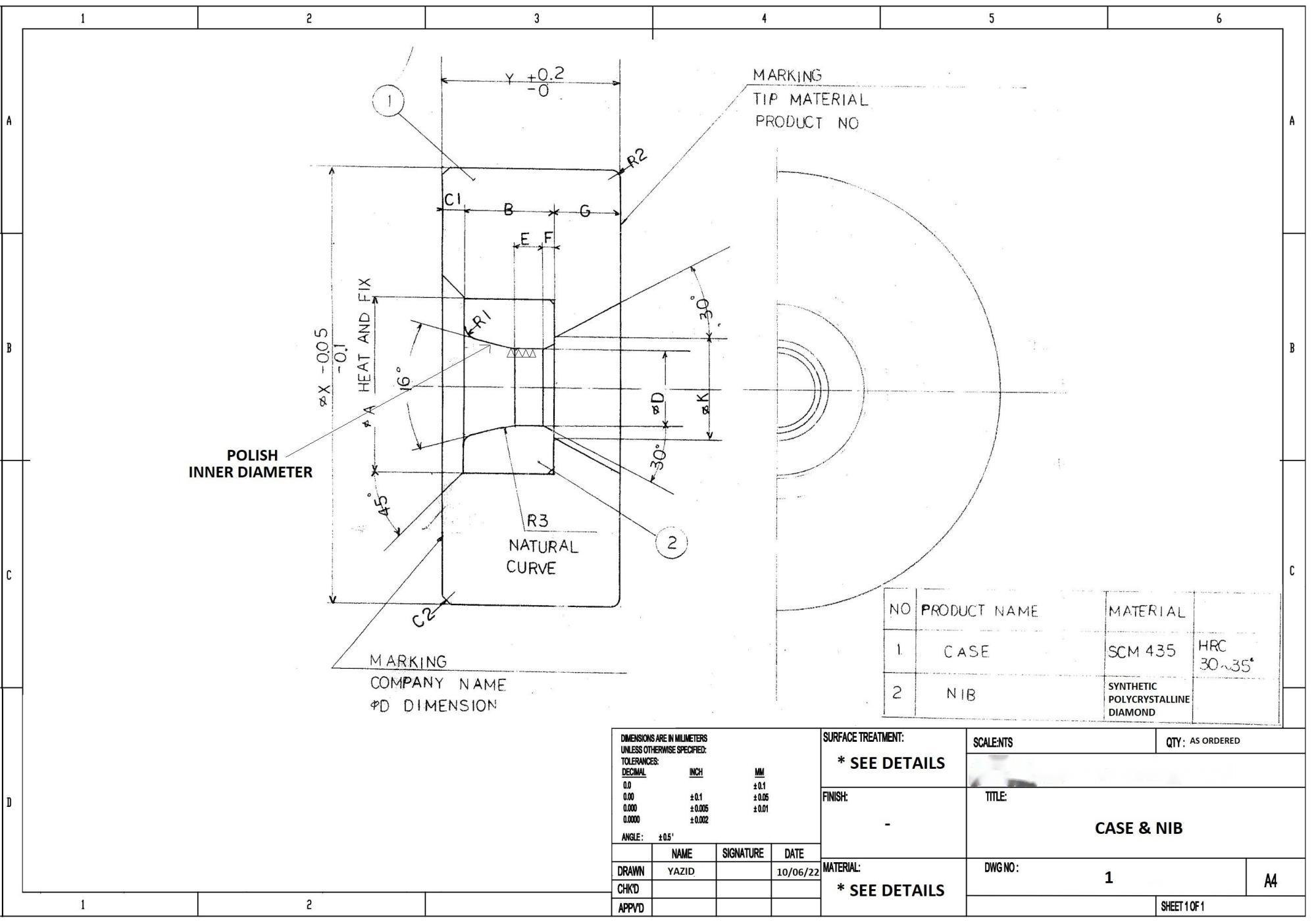

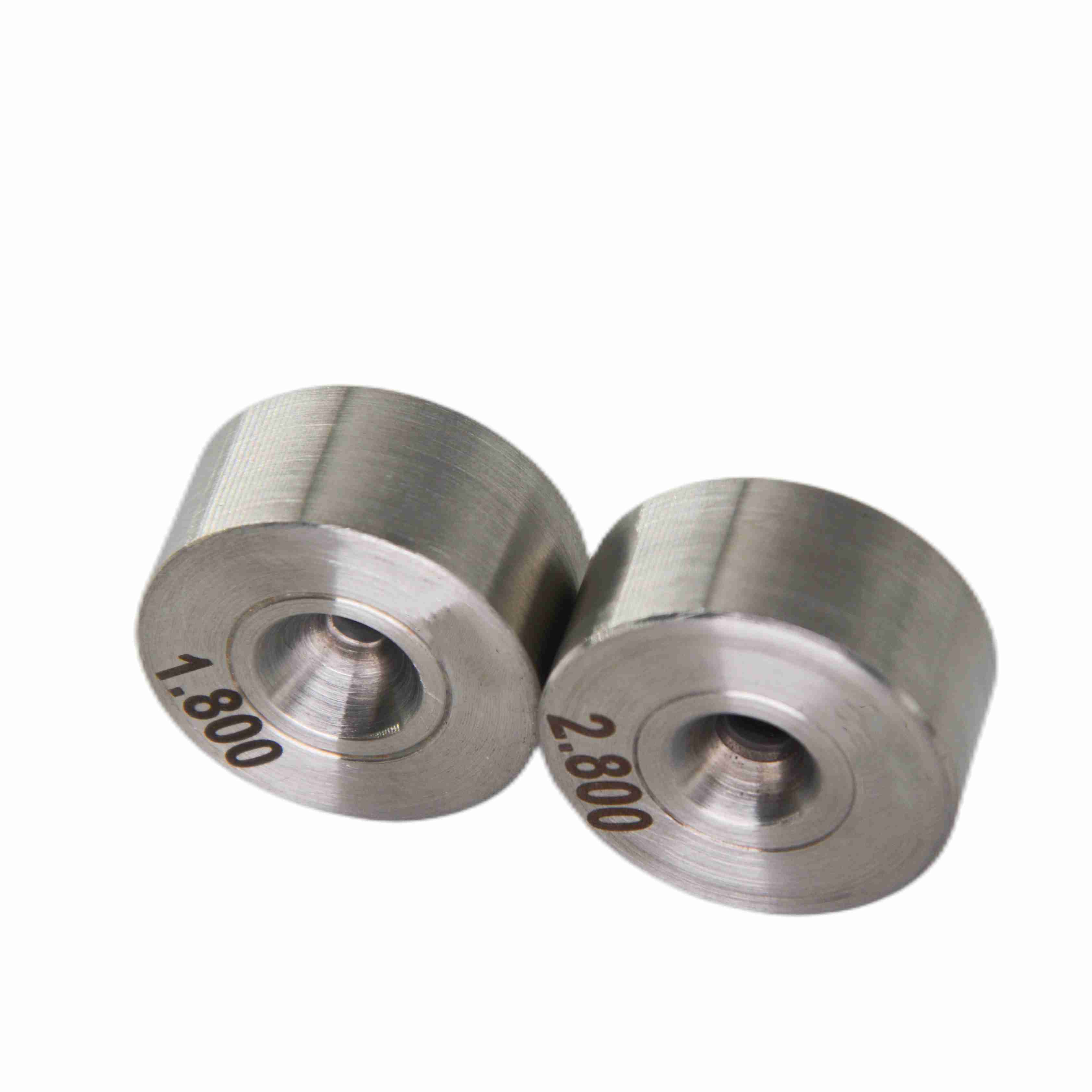

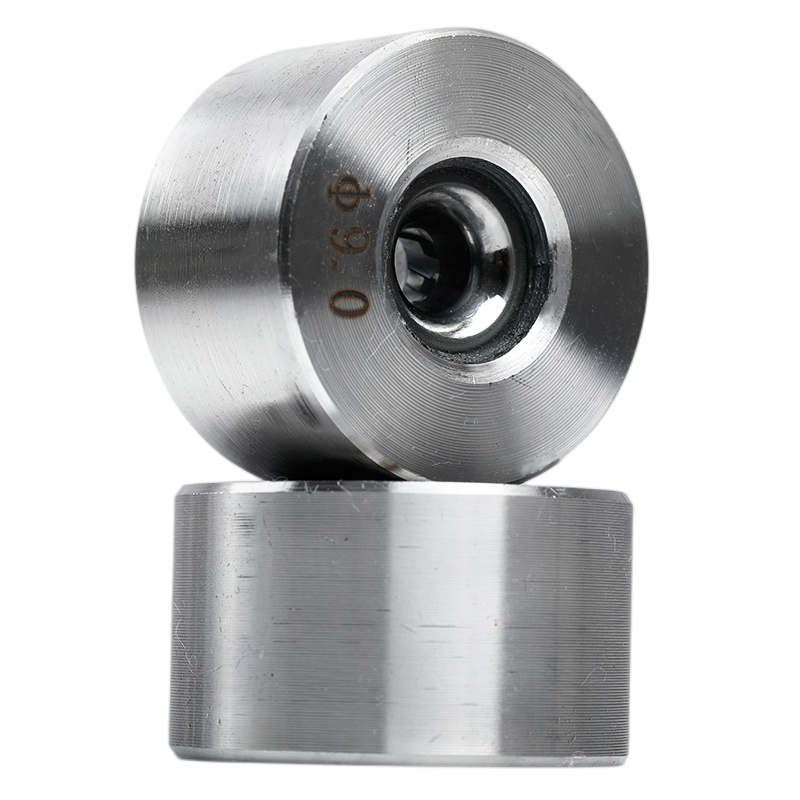

Ⅱ、Sample drawing
Ⅲ、Advantages
1.High hardness, good thermal conductivity, low coefficient of friction
2.Low cost, used in some highly lossy, hard wire processing processes
3.Uniform wear when used
4.Tungsten carbide module can withstand a high temperature of 2800 degrees C
5.Fast delivery time at about 7-10 days after receive your payments
Ⅳ、Benefits
1.Ideal for ferrous rod-size wire
2.Ideal for short and trial runs
3.Carbide grade tailored to wire material when required
4.Special coatings available to reduce friction and/or increase durability
5.Cast & helix control available
6.Inventory programs available
Ⅴ、Application
It is widely used to drawing all kinds of wire such as electronic devices, radar, television, instrumentation and aerospace, such as the use of high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire, wire cable wire and a variety of alloy wire.
Ⅵ、Size range table
|
Die Blank Size(mm) |
Hole Size(mm) |
|
φ13×10 |
0.40-2.10 |
|
φ16×14 |
2.11-3.10 |
|
φ22×18 |
3.11-6.00 |
|
φ30×21 |
6.01-10.50 |
|
φ40×25 |
10.51-16.50 |
|
φ50×28 |
16.60-26.00 |
|
φ60×35 |
26.10-36.00 |
|
φ75×35 |
36.10-50.00 |
|
φ90×35 |
50.01-60.00 |
|
φ12×8 |
0.80-2.70 |
|
φ15×10 |
1.30-4.50 |
|
φ20×14 |
3.50-6.40 |
|
φ25×18 |
5.70-8.70 |
|
φ30×22 |
7.70-11.50 |
|
φ35×25 |
9.70-14.00 |
|
φ40×27 |
12.50-17.50 |
|
φ12.7×11.4 |
0.80-4.60 |
|
φ15.8×15.2 |
0.80-5.30 |
|
φ18×17.7 |
1.00-8.90 |
|
φ19.5×19.5 |
5.80-9.00 |
|
φ25.4×20.8 |
8.80-12.30 |
|
φ30.1×20.8 |
9.00-15.00 |
|
φ38.1×25.4 |
11.50-17.30 |
